1970-72 Chevelle LED Fog Light Kit

The finishing touch your front end has been missing. Ditch the yellowed, dim, 50-year-old fog lights and drop in a set that actually cuts through weather — without hacking up your valance or fabricating your own brackets.

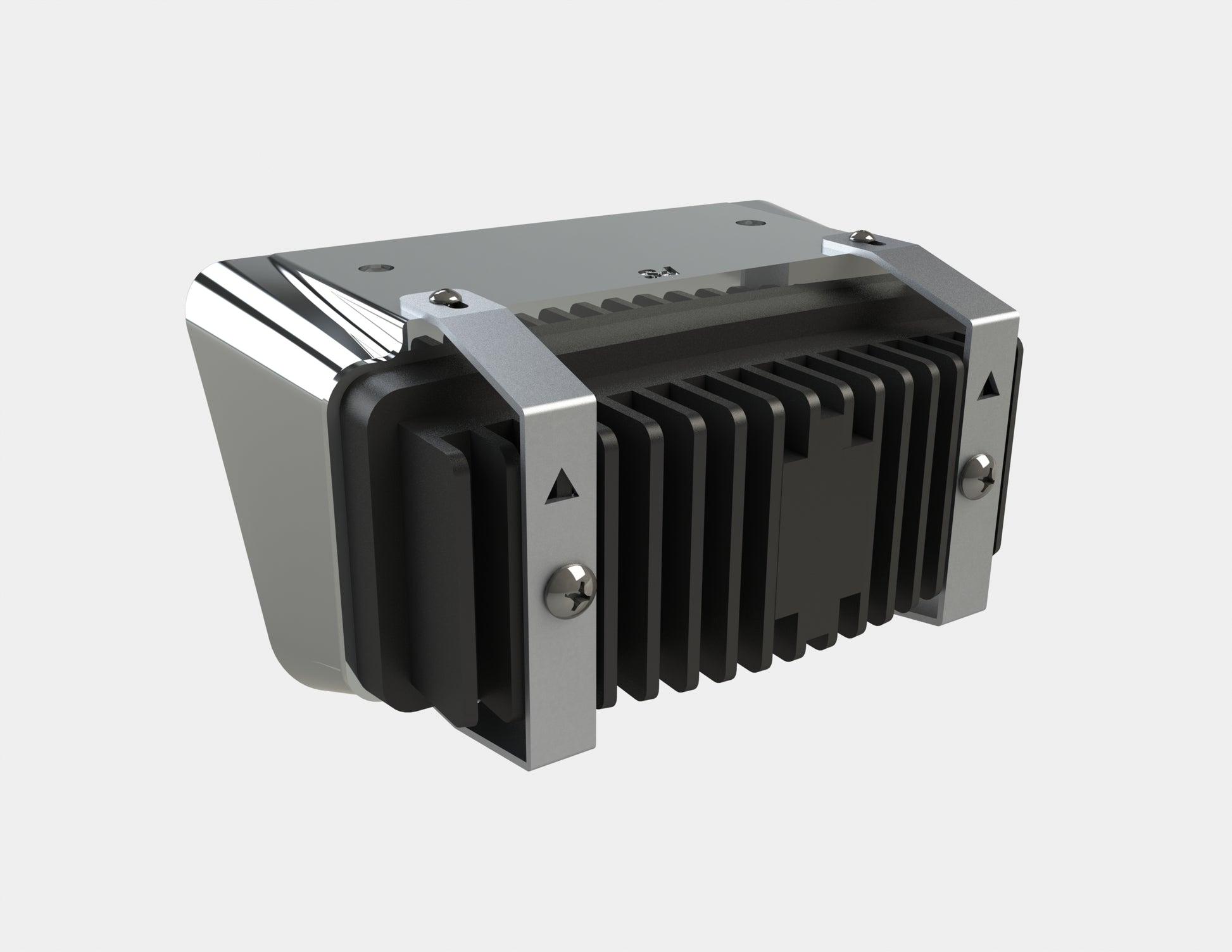

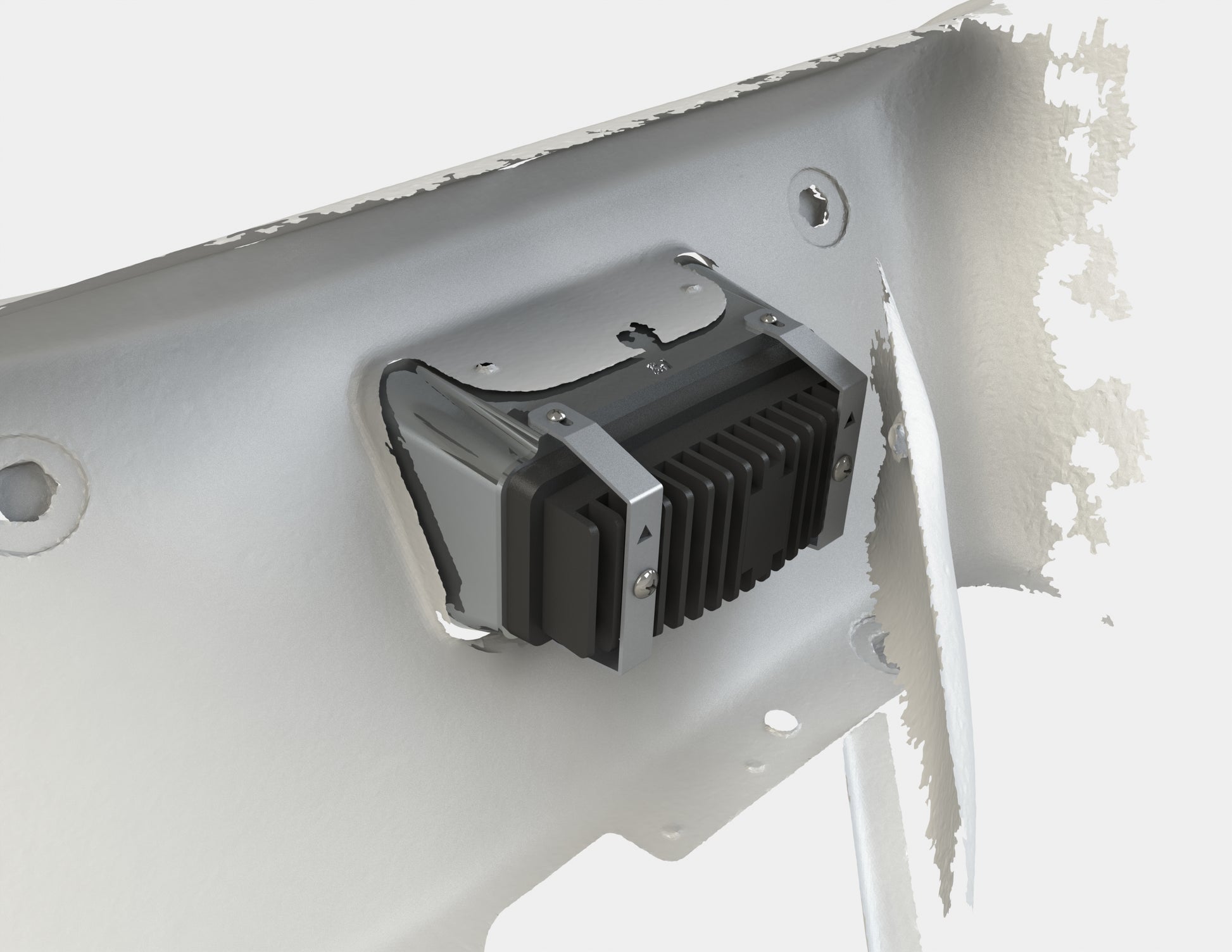

This kit pairs premium JW Speaker SAE/ECE-compliant LED auxiliary lights with ISK custom mounting brackets engineered specifically for the 70-72 Chevelle front end.

Specifications

• Type: 12V SAE/ECE LED Auxiliary Light
• Beam Pattern: Forward Lighting — Fog
• Raw Lumen Output: 800
• Effective Lumen Output: 250
• Nominal LED Color Temperature: 5000 K
• Input Voltage: 12V DC
• Operating Voltage: 9-18V DC
• Current Draw: 1.20A @ 12V DC
• Transient Spike Protection: 150V Peak @ 1 Hz — 100 Pulses
• Height: 63.25 mm / 2.49 in
• Width: 138.18 mm / 5.44 in
• Depth: 55.63 mm / 2.19 in
• Shape: Rectangular
• Outer Lens: Polycarbonate, Clear
• Housing: Die-Cast Aluminum, Black
• Mounting: Flush Mount
• Operating Temperature: -40 °C to 65 °C / -40 °F to 149 °F
• Connector: Bare Leads (Red = Positive, Black = Negative)

Kit Includes

• (2) JW Speaker LED fog lights
• (2) ISK custom mounting brackets
• Mounting hardware
