2X2 4 Switch Set with Flat Bezel

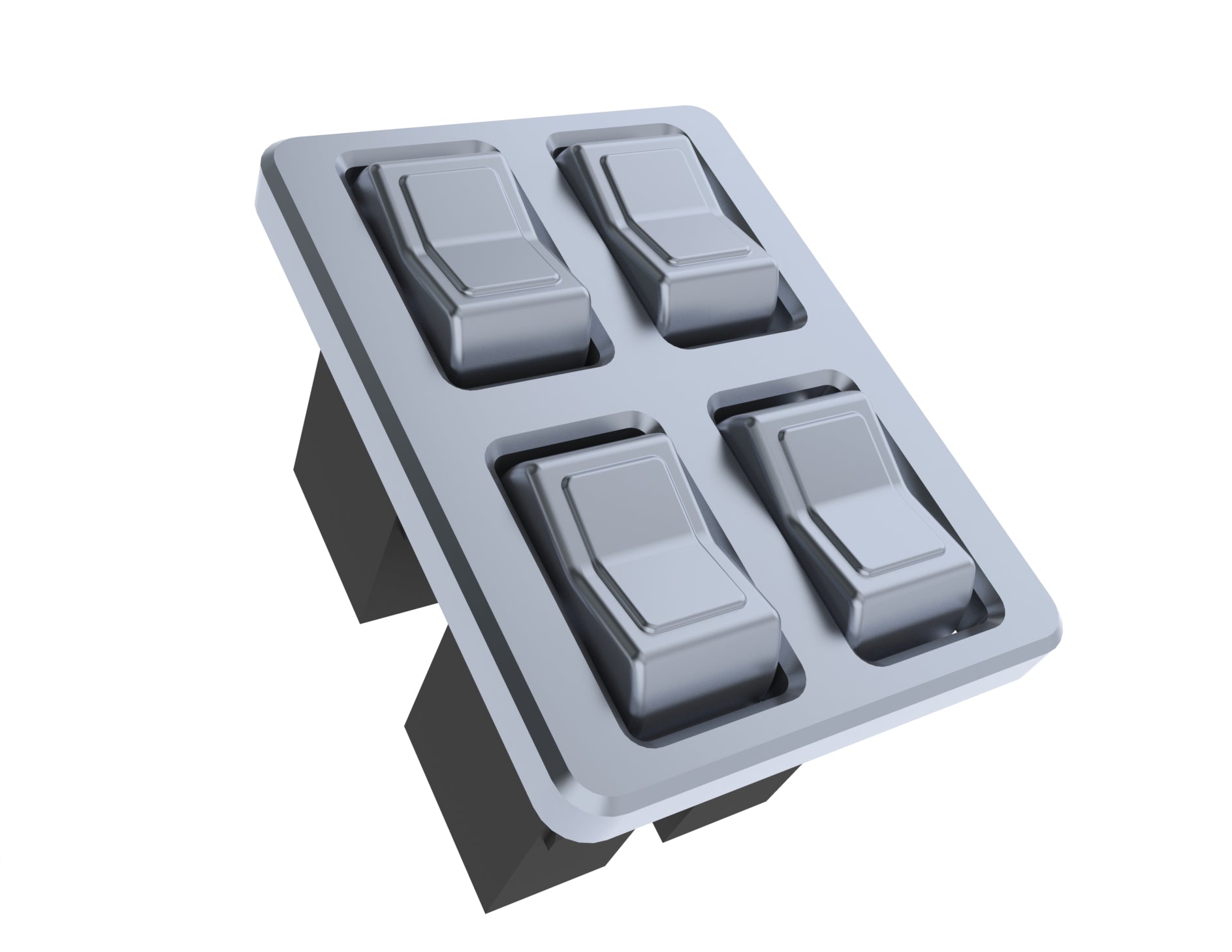

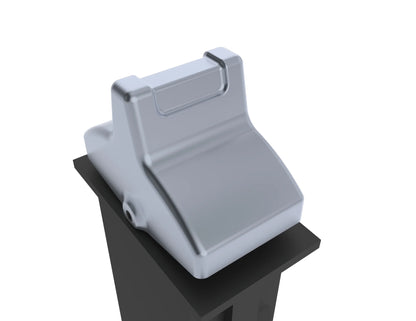

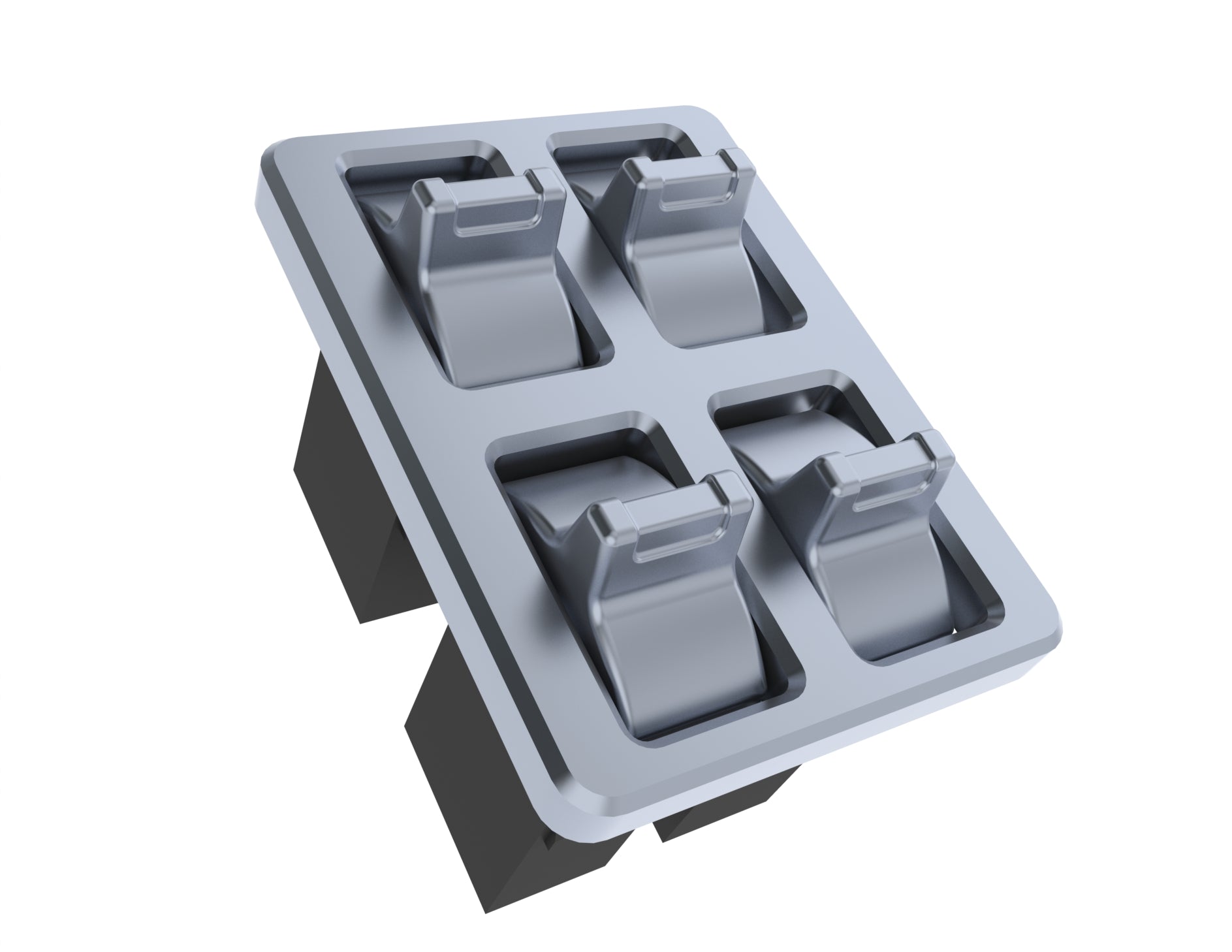

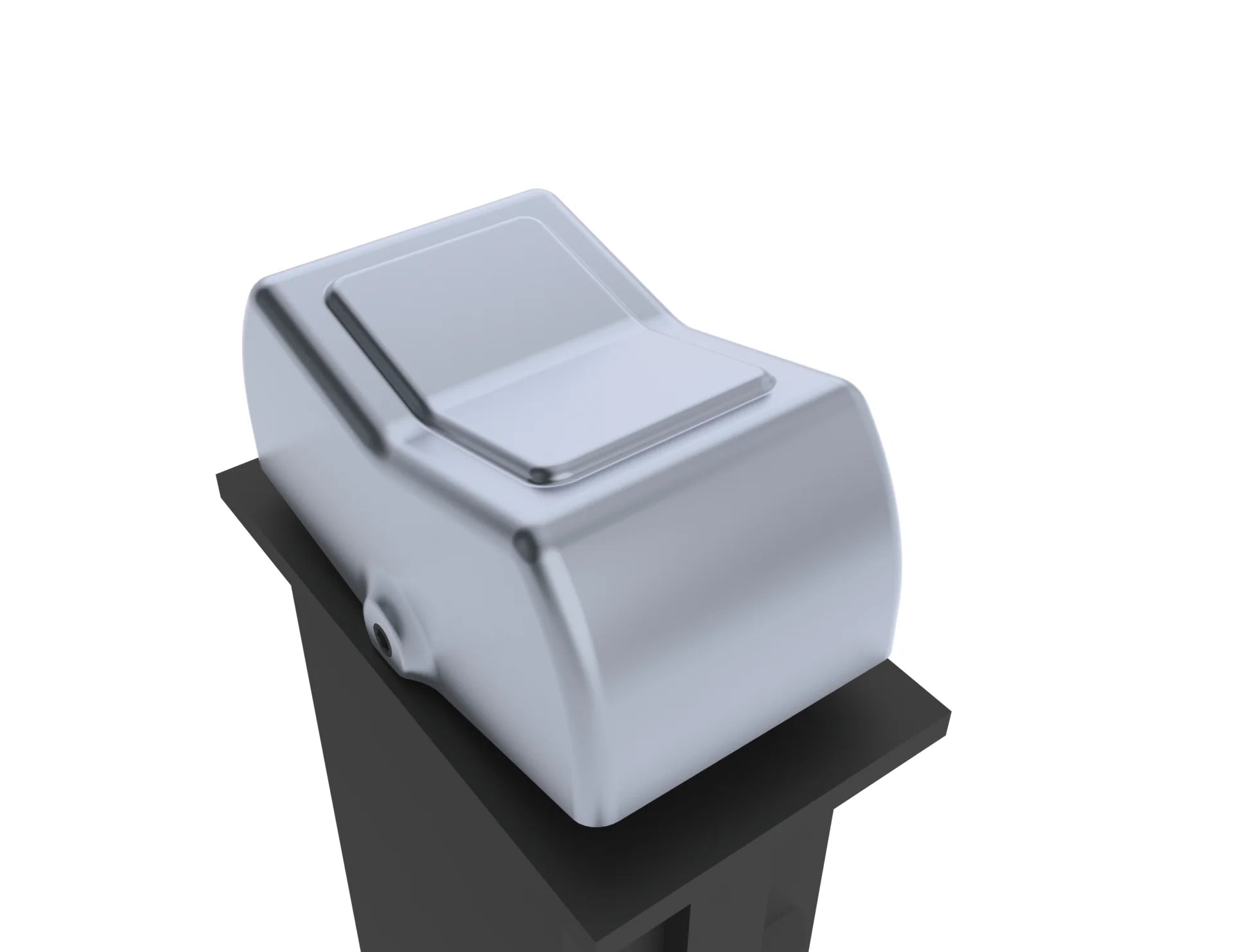

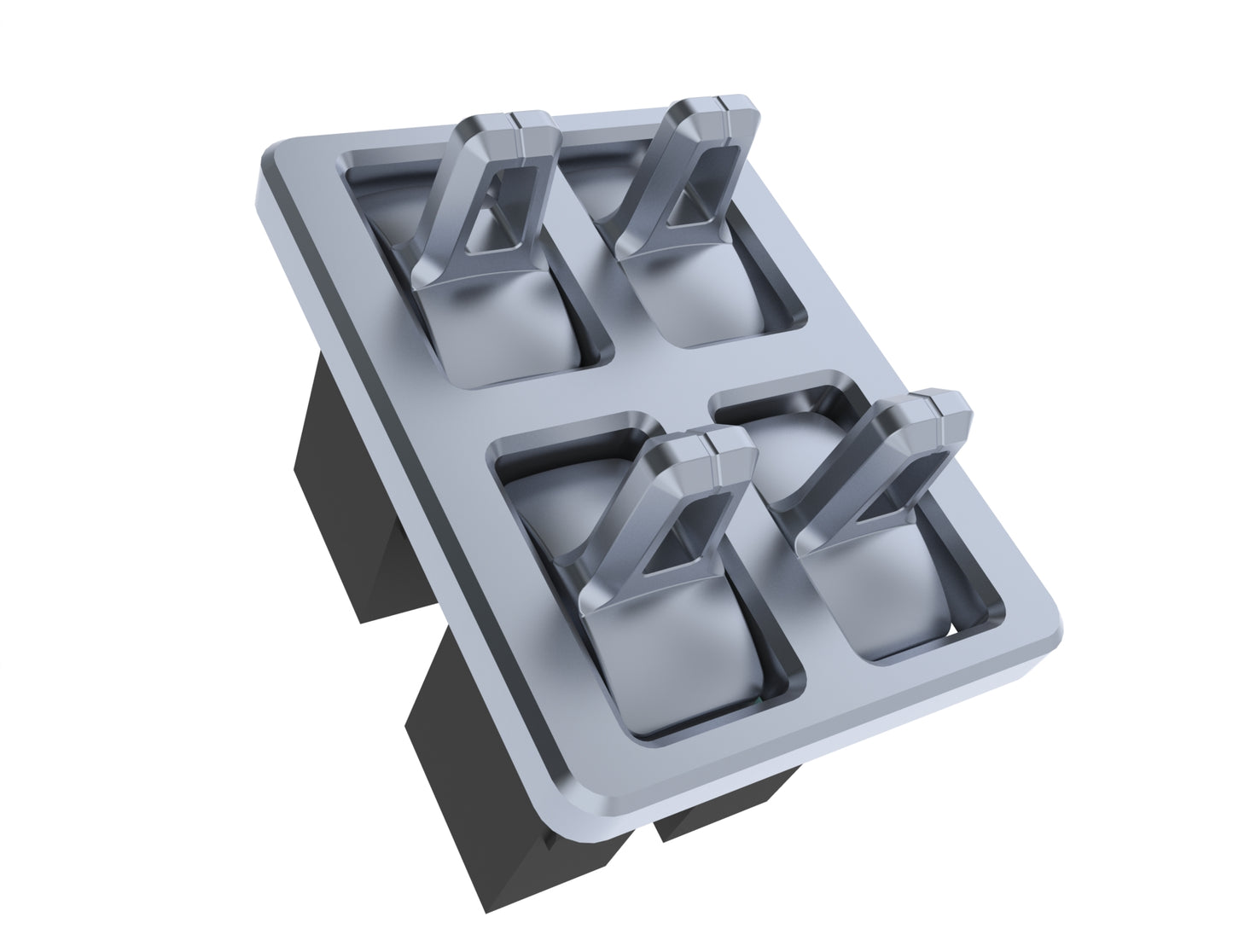

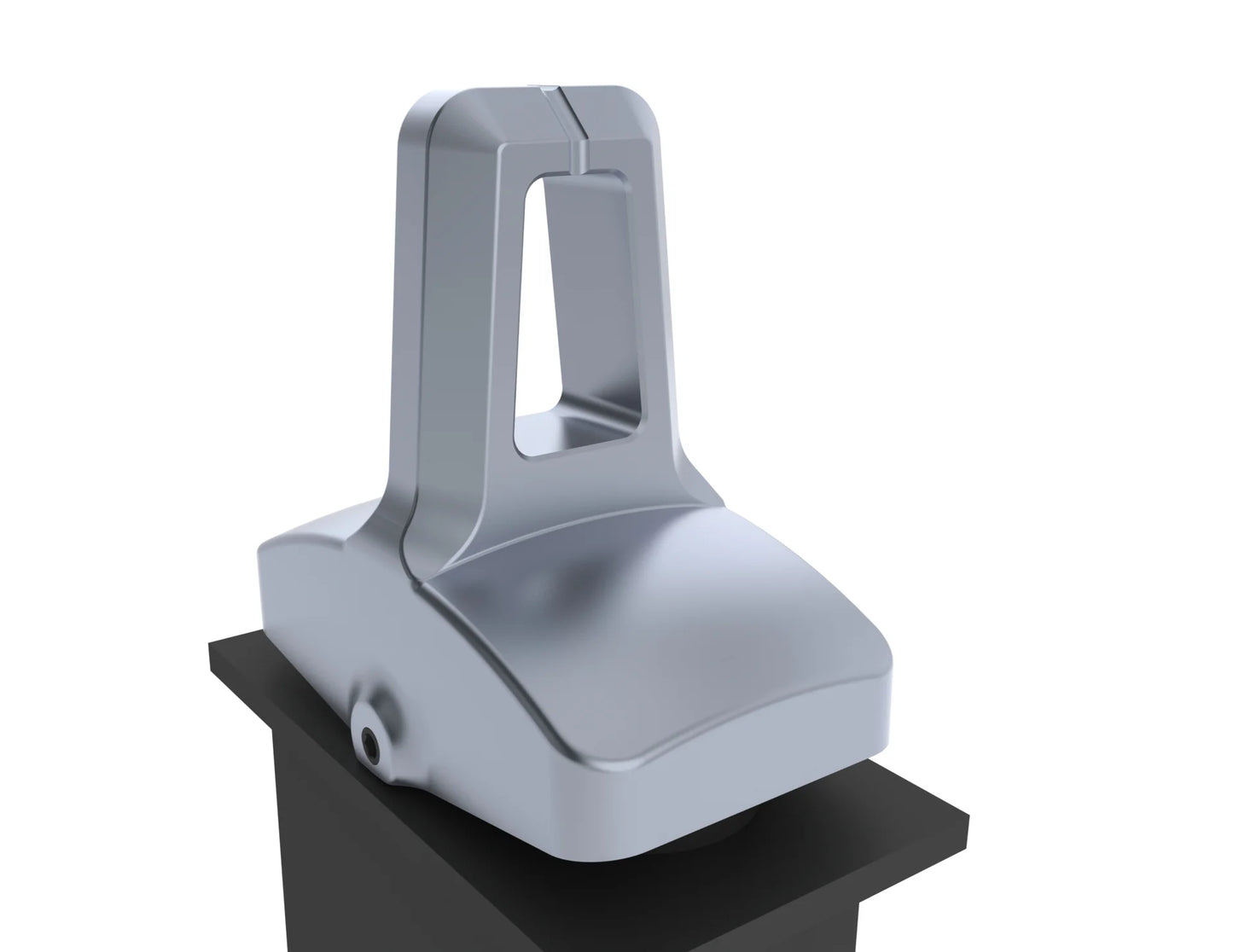

Building on the in-line 4 switch sets we offer, the 2X2 4 Switch configuration with flat bezel features enhanced ergonomics and a refined design. Made in the USA, these switches feature aluminum tops that can be finished in chrome, polish, anodize, powder coat, cerakote, paint, raw, blasted, or brushed to achieve the perfect look.

The bezel is meticulously designed for a tighter fit, ensuring a clean and seamless installation.

Available Functions:

• Power Window: Ensure smooth operation with momentary-on/off functionality.
• Headlight: Easily switch between off, low, and high beams.
• Starter Switch: Dependable momentary-on switch for engine starts.
• Universal: Simple and effective off-on control for various applications.

Power window switch - Pin Out

Pin 1 - Jumper wire also connected to Pin 6

Pin 2 - To ground

Pin 3 - Negative side of Power window motor

Pin 4 - Jumper wire also connected to Pin 3

Pin 5 - Fused Power circuit

Pin 6 - Positive side of Power window motor

Pin 7 - LED light - to ground

Pin 8 - LED light - from switched power

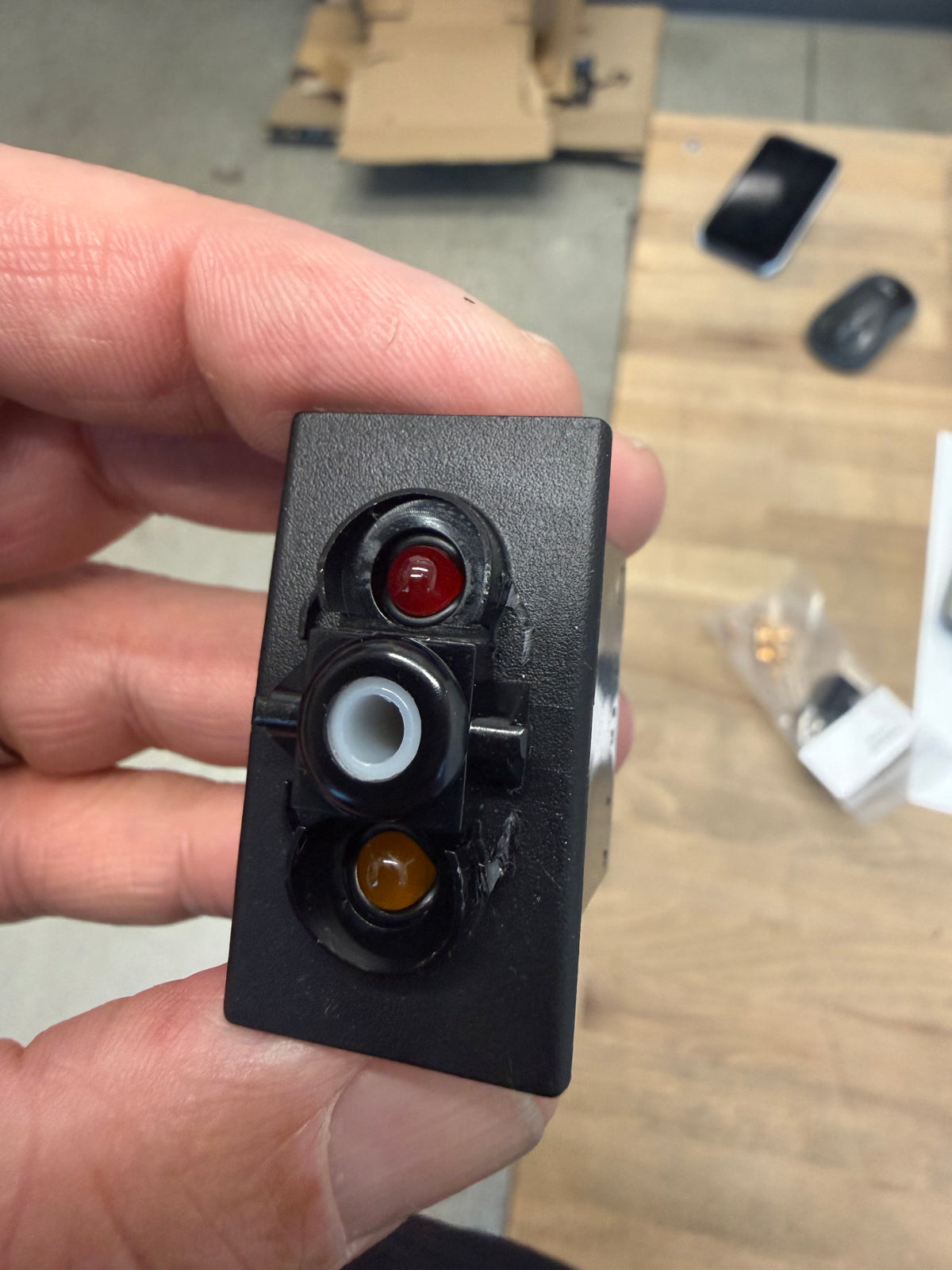

If you look on the side of the switch you will see the small number for each pin on the switch.

Headlight switch - Pin Out

Pin 2 - Fused Power for Parking lights

Pin 3 - To Parking lights or Parking light relay

Pin 5 - Fused Power for headlights

Pin 6 - To Headlights or Headlight relay

Pin 7 - LED light - to ground

Pin 8 - LED light - from switched power

If you look on the side of the switch you will see the small number for each pin on the switch.

On-Off switch - Pin Out

Pin 2 - To part for switched power

Pin 3 - Fused power for switched

Pin 7 - LED Light - to ground

Pin 8 - LED Light - from switched power

If you look on the side of the switch you will see the small number for each pin on the switch.
