PRODUCT DESCRIPTION
The GT style switches bring a sleek, modern design to your vehicle's interior. Crafted with precision in the USA, these switches are built for durability and functionality. The switch tops are made of aluminum, allowing for a variety of finishes including chrome, polish, anodize, powder coat, cerakote, paint, raw, blasted, or brushed. This versatility ensures they perfectly match any custom interior.

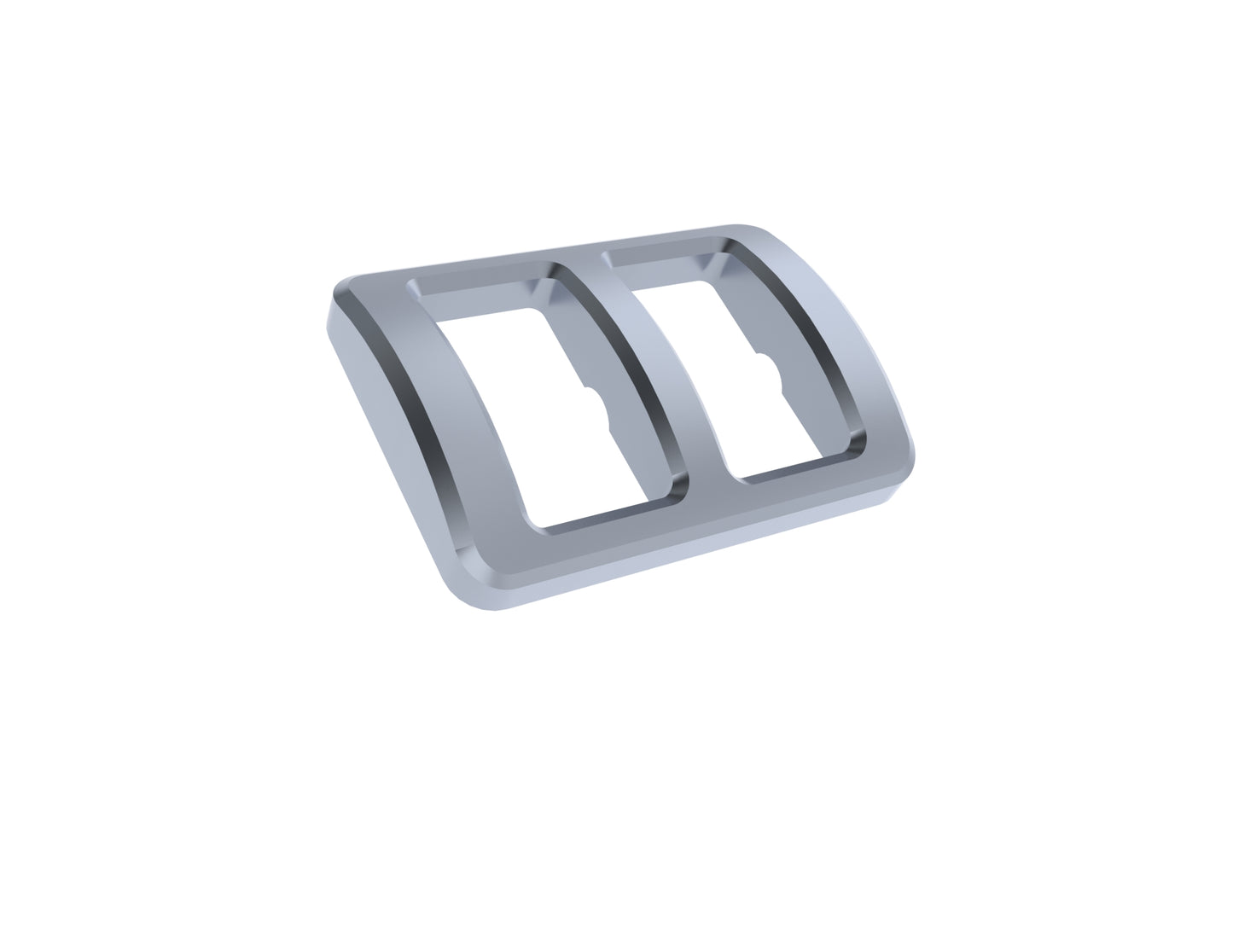

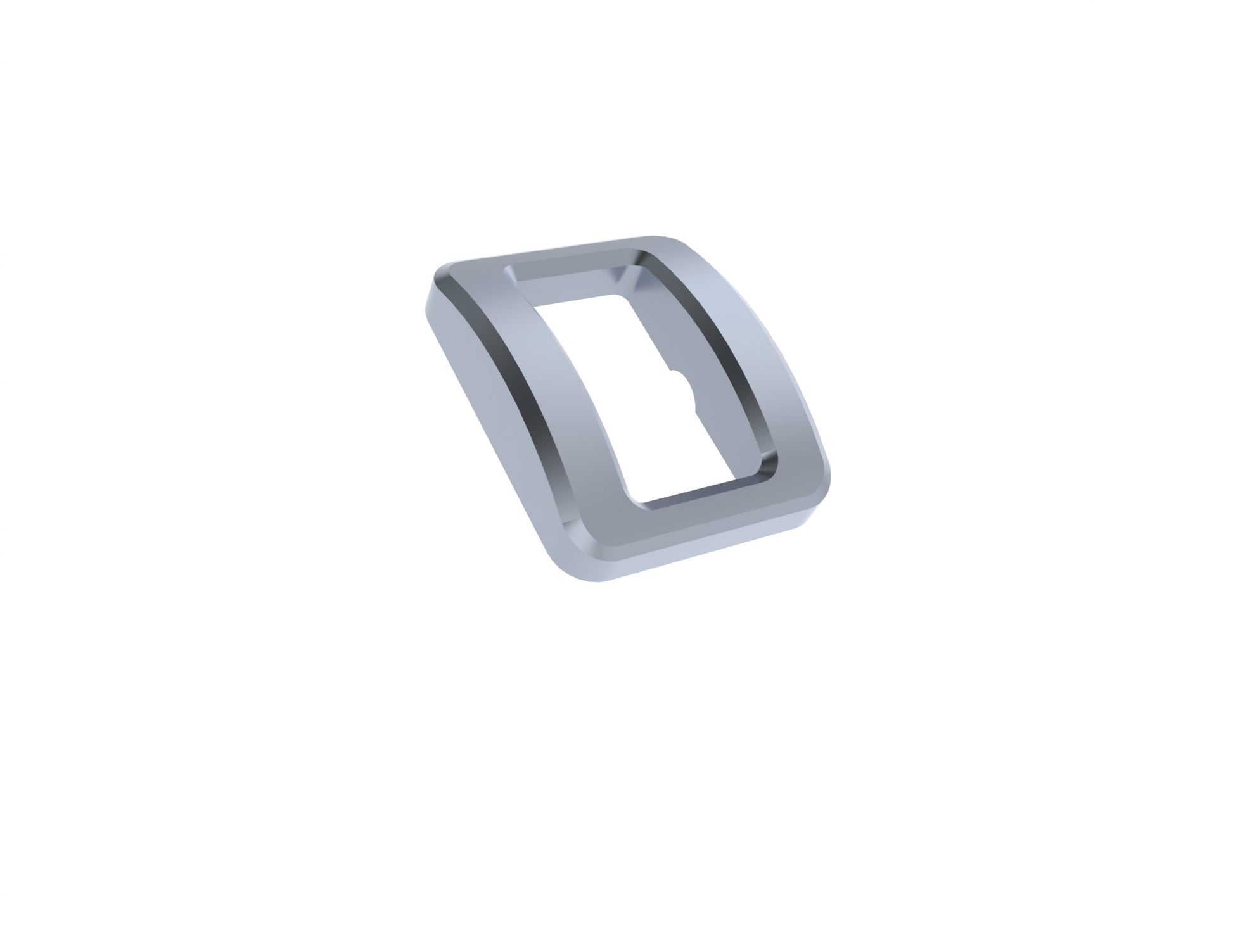

We designed the bezel to package them tighter, providing a clean and professional installation every time.
Available Functions:
-
Power Window: Ensure smooth operation with momentary-on/off functionality.
-
Headlight: Easily switch between off, low, and high beams.
-
Starter Switch: Dependable momentary-on switch for engine starts.
-
Universal: Simple and effective off-on control for various applications.
Power window switch - Pin Out
Pin 1 - Jumper wire also connected to Pin 6
Pin 2 - To ground
Pin 3 - Negative side of Power window motor
Pin 4 - Jumper wire also connected to Pin 3
Pin 5 - Fused Power circuit
Pin 6 - Positive side of Power window motor
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
Headlight switch - Pin Out
Pin 2 - Fused Power for Parking lights
Pin 3 - To Parking lights or Parking light relay
Pin 5 - Fused Power for headlights
Pin 6 - To Headlights or Headlight relay
Pin 7 - LED light - to ground
Pin 8 - LED light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
On-Off switch - Pin Out
Pin 2 - To part for switched power
Pin 3 - Fused power for switched
Pin 7 - LED Light - to ground
Pin 8 - LED Light - from switched power
If you look on the side of the switch you will see the small number for each pin on the switch.
